Air Coolers For Hydraulic Systems Series A56
Brand
BONDIOLI & PAVESI
Service phone
+(30) 2310 752 773

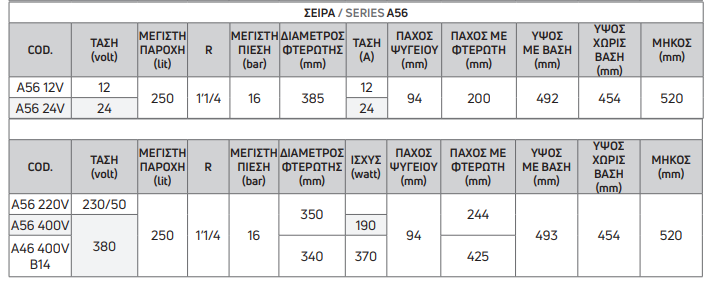

| COD. | CURRENT (volt) |
FLOW (lit) |
R | MAX PRESSURE (bar) |
FAN DIAM (mm) |
CURRENT (Α) |
WIDTH (mm) |
WIDTH WITH FAN (mm) |
HEIGHT WITH FEET (mm) |
HEIGHT WITHOUT FEET (mm) |
LENGTH (mm) |
| A56 12V | 12 | 250 | 1’1/4 | 16 | 385 | 12 | 94 | 200 | 492 | 454 | 520 |
| A56 24V | 24 | 24 | |||||||||
| A56 220V | 230/50 | 250 | 1’1/4 | 16 | 350 | 94 | 244 | 493 | 454 | 520 | |
| A56 400V | 380 | 190 | |||||||||
| A46 400V B14 | 340 | 370 | 425 |
